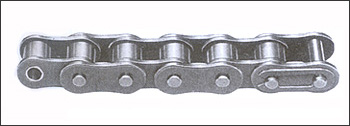

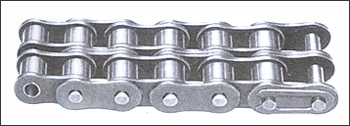

BS규격 체인

체인
번호		 피치
P 		로울러
링크
내폭
W 		로울러
외경
D 		핀 링크플레이트 횡
피
치
C 		평균
파단강도
(kgf) 		축수
면적
(cm2) 		개략
중량
(kg/m)
경
d 		치수
L₁		 치수
L₂		 길이
L₁
+L₂ 		두께
T 		두께
t 		폭
H 		폭
h
06B
9.525
5.72
6.35
3.28
6.70
10.1
16.8
1.3
1.3
8.3
8.3

910
0.28
0.41
08B
12.70
7.75
8.51
4.45
8.50
9.5
18.0
1.5
1.5
11.8
10.9

1,820
0.5
0.7
10B
15.875
9.65
10.16
5.08
9.8
10.7
20.5
1.5
1.5
14.7
13.7

2,270
0.67
0.95
12B
19.05
11.68
12.07
5.72
11.35
12.15
23.5
1.8
1.8
16.1
16.1

2,950
0.89
1.25
16B
25.40
17.02
15.88
8.28
18.05
20.85
38.9
4.0
3.0
21.1
21.1

4,310
2.1
2.7
20B
31.75
19.56
19.05
10.19
21.1
24.2
45.3
4.5
3.5
26.4
26.4

6,580
2.96
3.6
24B
38.10
25.40
25.40
14.63
27.4
31.8
60.2
6.0
5.0
33.4
33.4

9,980
5.54
6.7
28B
44.45
30.99
27.94
15.90
33.0
37.4
70.4
7.0
6.0
37.0
37.1

13,160
7.38
8.3
32B
50.80
30.99
29.21
17.81
33.0
39.0
72.0
7.0
6.0
42.3
42.3

17,240
8.1
10.5
40B
63.50
38.10
39.37
22.89
35.35
58.65
94.0
8.0
8.0
52.9
52.9

26,770
12.75
16.0
48B
76.20
45.72
48.26
29.24
50.3
69.7
120.0
12.0
10.0
63.9
63.9

40,830
20.61
25.0
56B
88.90
53.34
53.98
34.32
58.5
78.5
137.0
13.0
12.0
77.9
77.9

55,340
27.9
35.0
64B
101.60
60.96
63.50
39.40
65.7
89.3
150.0
14.0
13.0
90.2
90.2

110,680
55.8
70.0
72B
114.30
68.58
72.39
44.48
74.35
98.65
173.0
17.0
15.0
103.6
103.6

163,160
83.71
105.0
06B-2
9.525
5.72
6.35
3.28
11.25
12.55
23.8
1.3
1.3
8.3
8.3
10.2
1,730
0.56
0.78
08B-2
12.70
7.75
8.51
4.45
15.50
16.40
31.9
1.5
1.5
10.9
10.9
13.9
3,180
1.01
1.35
10B-2
15.875
9.65
10.16
5.08
18.10
19.0
37.0
1.5
1.5
13.7
13.7
16.6
4,540
1.34
1.35
12B-2
19.05
11.68
12.07
5.72
21.10
21.90
43.0
1.8
1.8
16.1
16.1
19.5
5,900
1.79
2.50
16B-2
25.40
17.02
15.88
8.28
34.0
36.80
70.8
4.0
3.0
21.1
21.1
31.9
8,620
4.21
5.40
20B-2
31.75
19.56
19.05
10.19
39.40
42.40
81.8
4.5
3.5
26.4
26.4
26.5
13,160
5.91
7.20
24B-2
38.10
25.40
25.40
14.63
51.60
56.0
107.6
6.0
5.0
33.4
33.4
48.4
19,960
11.09
13.50
28B-2
44.45
30.99
27.94
15.90
62.85
67.15
130.0
7.0
6.0
37.1
37.1
59.6
26,320
14.79
16.60
32B-2

50.80
30.99
29.21
17.81
62.25
68.35
130.6
7.0
6.0
42.3
42.3
58.6
34,480
16.21
21.0
40B-2
63.50
38.10
39.37
22.89
76.55
89.75
166.3
8.0
8.0
52.9
52.9
72.3
53,540
25.50
32.0
48B-2
76.20
45.72
48.26
29.24
95.95
115.35
211.3
12.0
10.0
63.9
63.9
91.2
81,650
41.23
50.0
56B-2
88.90
53.34
53.98
34.32
11.50
132.10
243.6
13.0
12.0
77.9
77.9
106.6
110,680
55.80
70.0
64B-2
101.60
60.96
63.50
39.40
125.70
149.20
274.9
14.0
13.0
90.2
90.2
119.9
145,150
72.50
120.0
72B-2
114.30
68.58
44.8
44.48
142.55
166.75
309.9
17.0
15.0
103.6
103.6
136.3
183,260
92.40
160.0
